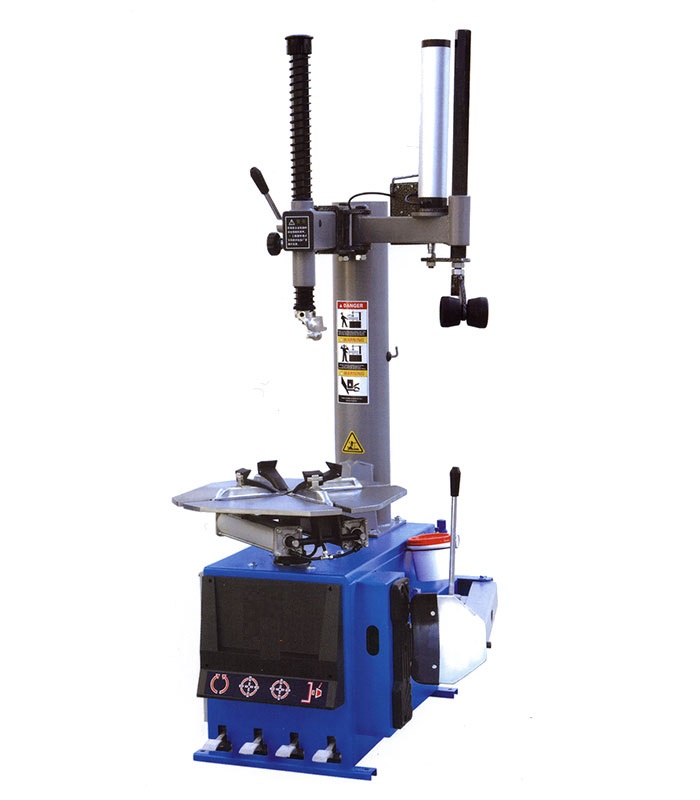

tire changer with left arm

Product Name:

tire changer with left arm

No. :

FST-986

Product Description:

FEATURE

1. Reversing switch with high-strength sterling sliver contacts

2. 24- inch standard scale market , sliding boat with spring steel , to protect the deck and the market between wear and dirt into the slide , so claw telescopic more smoothly and effectively protect the broader market life ,

3. Dis assembly of flat tires ,hard-arm tires do not hurt the rim and tires

4. 360-degree rotation of the tire head

5. High-grade non-slip scratch resistant high- quality duck head , effectively reduce the wheel tire rim damage ,

6. Exchange valve , stem with stainless steel .

7. Aluminum tripod typee , export model

8. Large shovel sheath with thick 6 mm anti-skid design

9. Pneumatic lock on the assists ,with automatic positioning locking device assists the tire pressure function,

10. Configure automotive booster device.

Technical parameter

Voltage : 110v/220v/380v

Rim clamping from outside: 12”-22”

Rim clamping from inside : 12”-24”

Rim diameter :1050mm

Wheel width :4”-13”

Motor power: 1.1 /0.75kw

Working rotation speed : 6.8 rpm

Working air pressure: 0.7-08 mpa

Gross / net weight : 240kg / 270kg

Pakcing size : 1150mm*920mm*930mm
