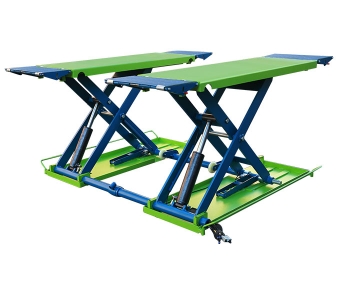

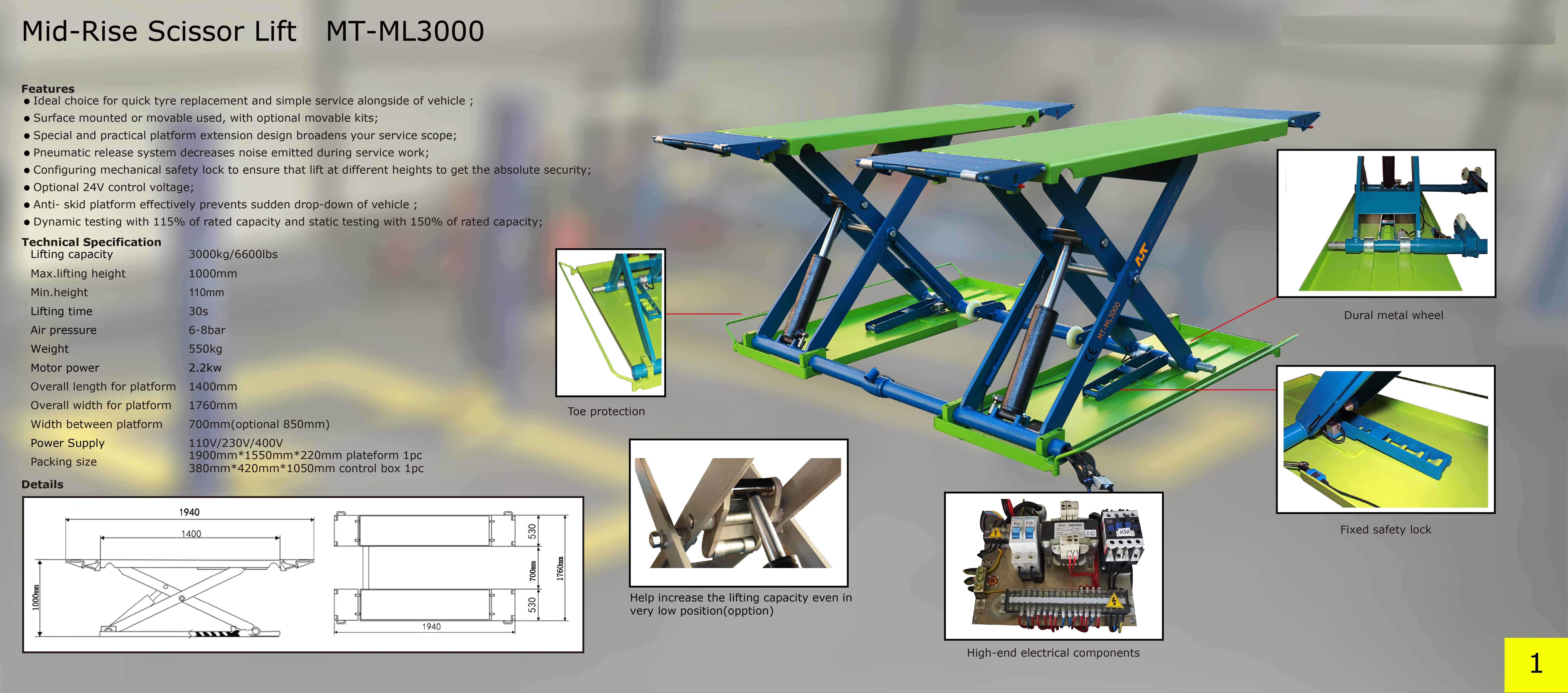

mid-rise scissor lift
Product Name:
mid-rise scissor lift
No. :
:
:

Product Description:


1.Ideal choice for quick tyre replacement and simple service alongside of vehicle ;
2.Surface mounted or movable used, with optional movable kits;
3.Special and practical platform extension design broadens your service scope;
4.Pneumatic release system decreases noise emitted during service work;
5.Configuring mechanical safety lock to ensure that lift at different heights to get the absolute security;
6.Optional 24V control voltage;
7.Anti- skid platform effectively prevents sudden drop-down of vehicle ;
8.Dynamic testing with 115% of rated capacity and static testing with 150% of rated capacity;



  Lifting   capacity
  3000kg/6600lbs
  Maxlifting   height
  1000mm
  Overall   length for platform
  1400mm
  Overall width   for platform
  1760mm
  Width between platform
  700mm(optional 850mm)
  Lifting   time
  30S
  Motor power
  2.2kw
  Min   height
  110mm
  Weight
  550kg
  Air pressure
  6-8bar
  Power   supply
  110v/230v/400v
  Packing Size
1900*1550*220 plateform
380*420*1050 control box 1pc
