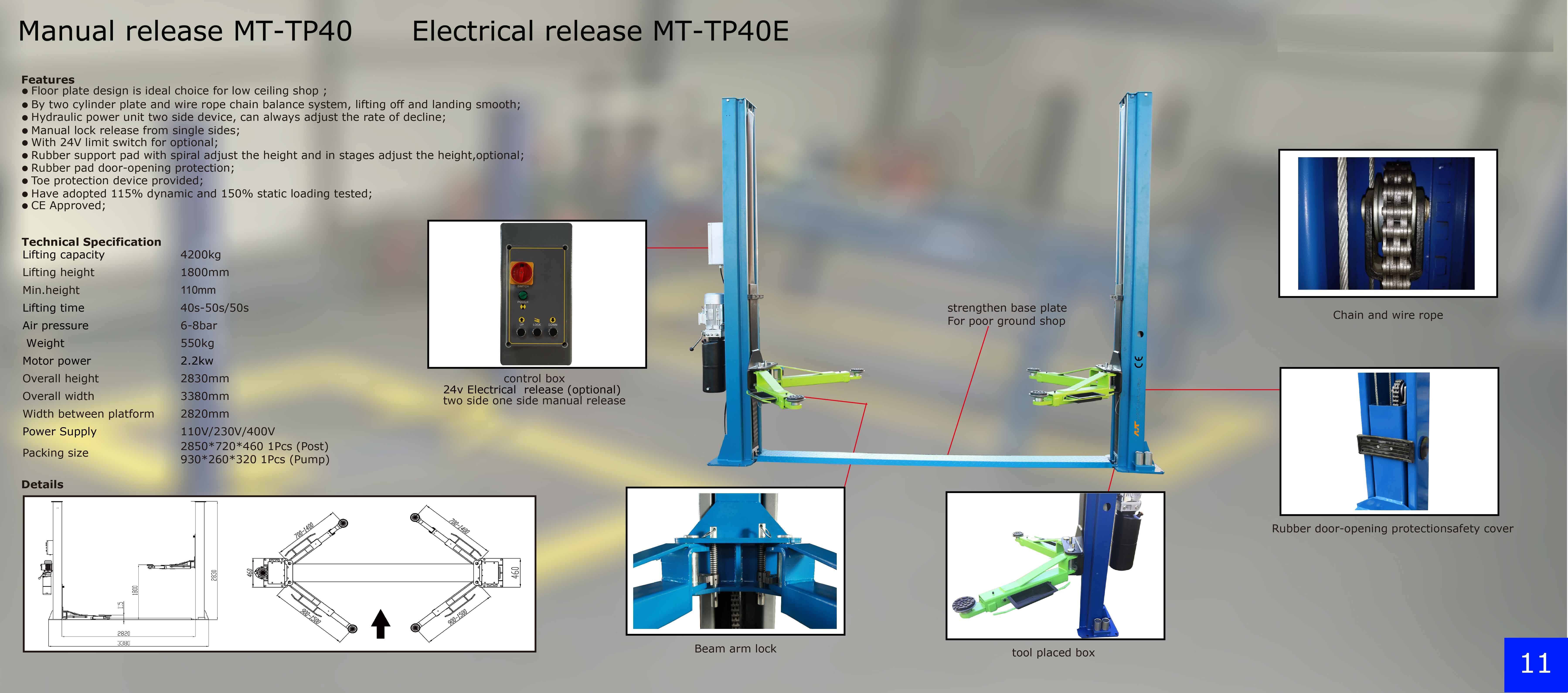

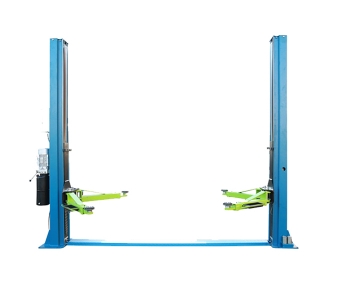

two post carlift 4000kg
Product Name:
two post carlift 4000kg
No. :
FST - 40
:
:

Product Description:

 ①: Floor plate design is ideal choice for low ceiling shop ;
 ②:By two cylinder plate and wire rope chain balance system, lifting off and landing smooth;
 ③:Hydraulic power unit configuration throttling device, can always adjust the rate of decline;

 ④: Manual lock release from two sides;
 ⑤: With 24V limit switch for optional;
 ⑥: Rubber support pad with spiral adjust the height and in stages adjust the height, optional;
 ⑦: Rubber pad door-opening protection;
 ⑧: Toe protection device provided;
 ⑨: Have adopted 115% dynamic and 150% static loading tested;
 ⑩: CE Approved;

  Lifting capacity
  4200kg
  Minimum height
  115mm
  Overall height
  2830mm
  Overall width
  3426mm
  Lifting time
  40-50s/50s
  Motor power
  2.2kw
  Lifting height
  1800mm
  Weight
  650kg
  Power supply
  110V/230V/400V
  Width between columns
  2820mm
  Packing   size
  2850mm*470mm*734mm
