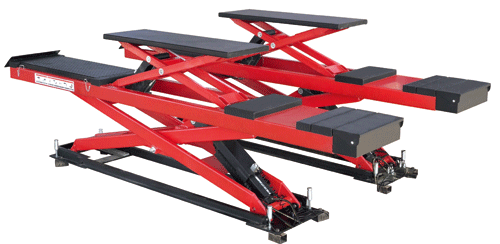

Hydraulic Zimu scissor Lift (GY-ZU-35A)

Product Name:

Hydraulic Zimu scissor Lift (GY-ZU-35A)

No. :

GY-ZU-35A

Product Description:

Hydraulic Zimu Scissor Lift

Technical Parameters

Product Type: GY-ZU-35A

Lifting Capacity: 4000KG

Lifting Height: 1750+450MM

Platform Length: 4000MM

Platform width: 610MM Power:3Kw/380V/50Hz 2.2Kw/220V/50Hz

Lifting Time: Host-machine 58s Sub-machine 18s

Rated Pressure: 220KG/CM2

Weight: ≈1750KG

Original Pressure: 6~8KG/CM2

/Functional Feature/

●The in-ground structure is occupied smaller space.

●The electric airlock is more safe

●The hydraulic system adopts advanced integrated valve plate oil

circuit and imported seals.

●You could manually drop the car and drive away if power is

failure.
