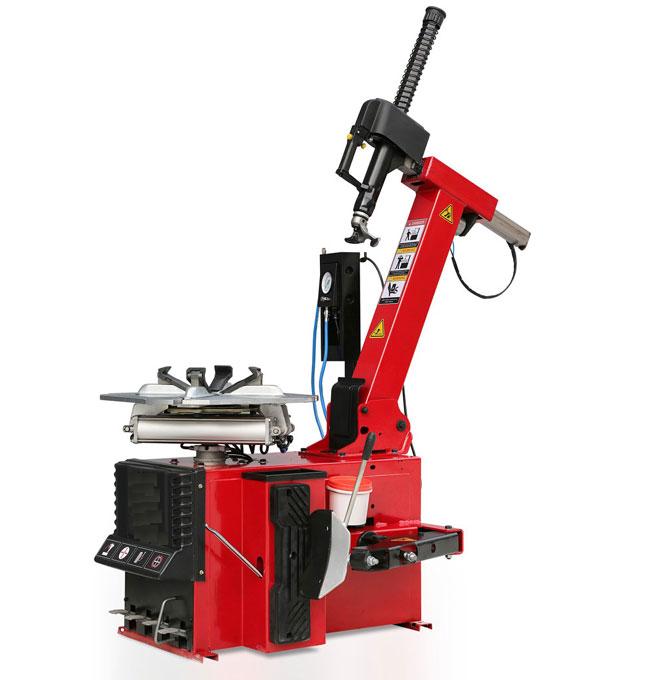

tyre changer (TC56)
Product Name:
tyre changer (TC56)
No. :

Product Description:

Technical parameters
Rim clamp from outside:10"-22"
Rim clamp from inside:12"-24"
Max. wheel diameter:1040 mm
Tire width:3"-15"
Working pressure:8~10bar
Machine weight:208kg

Application range:
Applicable for changing and inflating car tyres whose rim diameter is between 10”-24”.

Product features:
1. Dismounting tyres through push-pull arm.
2. The column going backwards pneumatically, pneumatic push-pull locking automatically.
3. With the function of rapid inflation and air pressure control.
Machine functions:
1. The column going backwards pneumatically, pneumatic push-pull locking automatically.
2. Central pressing tyre function makes jaws grip rim fast.
3. The motion structure of the four automatic alignment gripping jaws on the turn plate is link mechanism, which has synchronizing function and fix center automatically when gripping from outside to inside.
4. The once forming mobile slider and the design of processing machinery structure made it not easy to deformation.
5. The working head is plated hard chrome on the surface through high frequency sudden fire, this kind of treating processes insure the intensity, toughness and abrasive resistance. When the machine is running, the noise is low.
6. When the machine is running ,the noise is low.
7. The tools touching rim directly like changing working head, jaws, crowbar and spade are all equipped with protector, these protectors ensure no hurt to the rim.
8. It has good personal presentation, thick steel plate and super strong rigidness.
Machine quality:

This product gained Europe CE certification.
